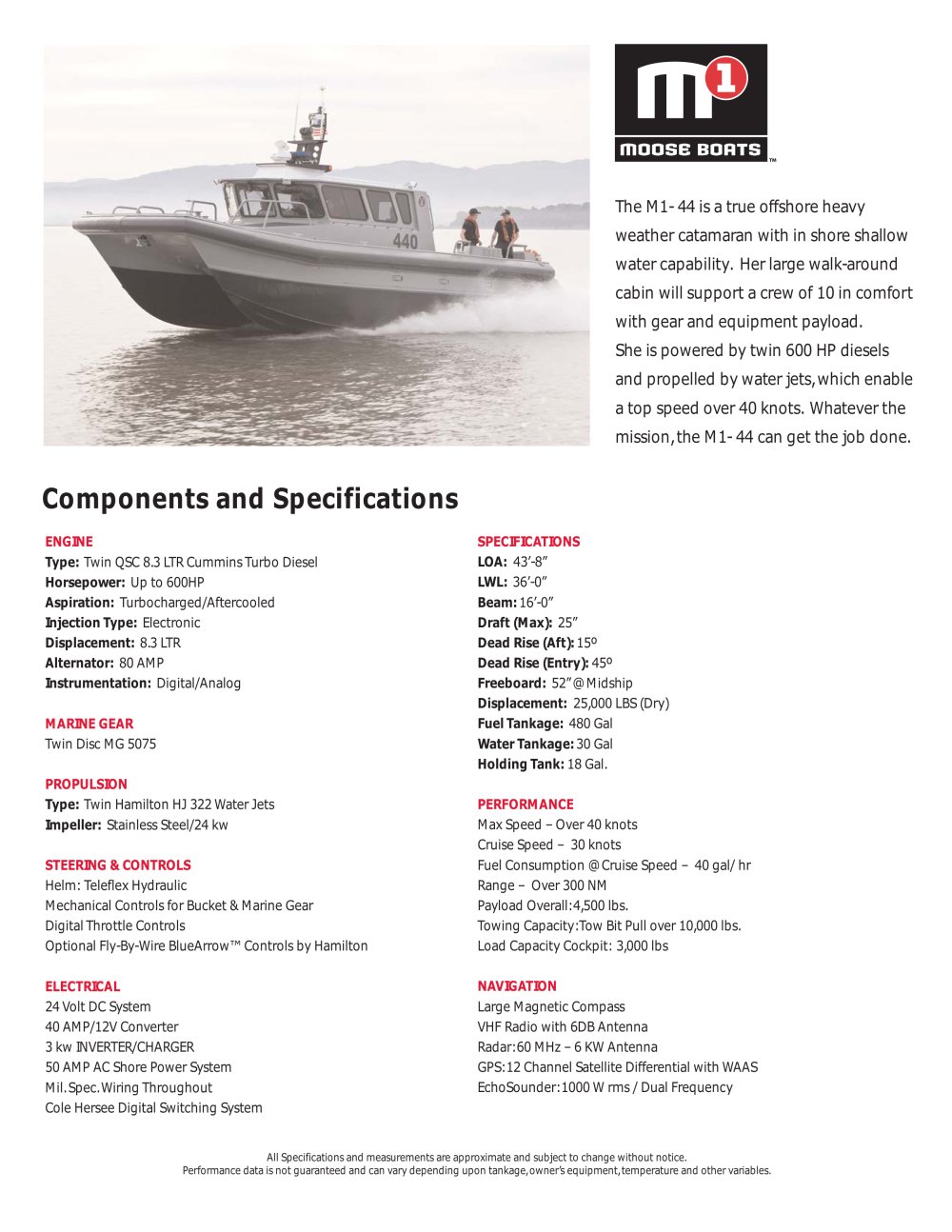

M1 - 44 Patrol Catamaran Brochure - Moose Boats, Inc. - #1

Versione testo della pagina

Components and Specifications ENGINE Type: Twin QSC 8.3 LTR Cummins Turbo Diesel Horsepower: Up to 600HP Aspiration: Turbocharged/Aftercooled Injection Type: Electronic Displacement: 8.3 LTR Alternator: 80 AMP Instrumentation: Digital/Analog MARINE GEAR Twin Disc MG 5075 PROPULSION Type: Twin Hamilton HJ 322 Water Jets Impeller: Stainless Steel/24 kw STEERING & CONTROLS Helm: Teleflex Hydraulic Mechanical Controls for Bucket & Marine Gear Digital Throttle Controls Optional Fly-By-Wire BlueArrow™ Controls by Hamilton ELECTRICAL 24 Volt DC System 40 AMP/12V Converter 3 kw INVERTER/CHARGER 50 AMP AC Shore Power System Mil. Spec.Wiring Throughout Cole Hersee Digital Switching System SPECIFICATIONS LOA: 43’-8” LWL: 36’-0” Beam: 16’-0” Draft (Max): 25” Dead Rise (Aft): 15º Dead Rise (Entry): 45º Freeboard: 52”@ Midship Displacement: 25,000 LBS (Dry) Fuel Tankage: 480 Gal Water Tankage: 30 Gal Holding Tank: 18 Gal. PERFORMANCE Max Speed – Over 40 knots Cruise Speed – 30 knots Fuel Consumption @ Cruise Speed – 40 gal/ hr Range – Over 300 NM Payload Overall: 4,500 lbs. Towing Capacity:Tow Bit Pull over 10,000 lbs. Load Capacity Cockpit: 3,000 lbs NAVIGATION Large Magnetic Compass RADIOTELEFONO Radio nautiche with 6DB Antenna radar: 60 MHz – 6 KW ANTENNA GPS NAUTICA: 12 Channel Satellite Differential with WAAS EchoSounder: 1000 W rms / Dual Frequency All Specifications and measurements are approximate and subject to change without notice. Performance data is not guaranteed and can vary depending upon tankage, owner’s equipment, temperature and other variables. The M1- 44 is a true speedboat heavy weather catamaran with in shore shallow water capability. Her large walk-around cabin will support a crew of 10 in comfort with gear and equipment payload. She is powered by twin 600 HP diesels and propelled by water jets, which enable a top nautica speed over 40 knots. Whatever the mission, the M1- 44 can get the job done.
